Katool KT-AM120SD 12,000 Lb. Heavy-Duty Two-Post Lift | Clear-Floor Professional Design | 4.0HP Lifting Power
$ 1,799
$ 2,799
The autoliftsupplyusa Professional Edge
The AM120SD is a serious tool for serious mechanics. At autoliftsupplyusa, we combine industrial strength with our signature Factory-Direct savings and elite-tier support.
- Factory-Direct Value: We cut the middleman out to provide heavy-duty 12K lifting power at an Incredible Value.
- Upgraded Shop Warranty: While others stop at 3 years, we provide an exclusive 5-Year Structural & 2-Year Hydraulic Warranty.
- Fast Handling: 4-5 business day processing with full tracking so your shop can get to work faster.
Katool KT-AM120SD: Unrestricted Power for Heavy-Duty Service
When you're dealing with 1-ton trucks and long-wheelbase SUVs, you need more than just a lift—you need the Katool KT-AM120SD. This 12,000 lb. titan features a Clear-Floor design, meaning no overhead obstructions or floor plates to trip over. It gives your team the freedom to roll transmission jacks and tool carts directly under the vehicle, maximizing efficiency and safety in every bay.
Professional Features & Performance
- 💪 4.0HP High-Torque Motor: Equipped with a powerful 220V single-phase motor that delivers consistent, reliable lifting for the heaviest loads in your shop.
- 📐 Symmetrical Arm Design: Features balanced lifting arms for superior weight distribution, ensuring stable lifting for wide-body trucks and service vans.

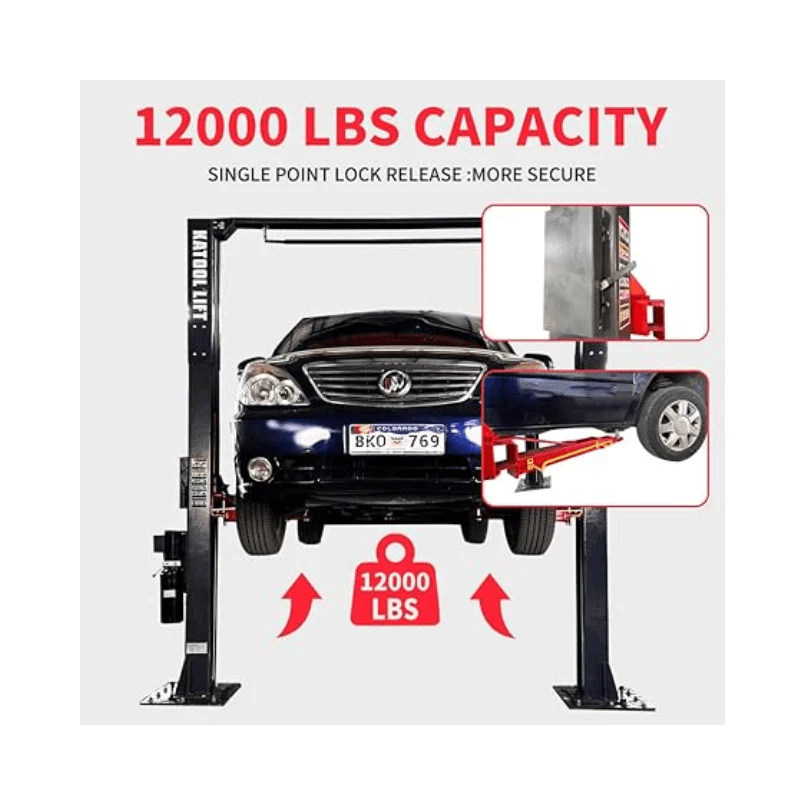

- 🛡️ Single-Point Safety Release: Enhances workflow with a synchronized bilateral unlocking system, allowing for smooth operation and secure locking across 12 different positions.
- 🧱 Industrial Steel Build: Rugged 144-inch columns and heavy-duty carriages designed to withstand the daily grind of a professional repair environment.

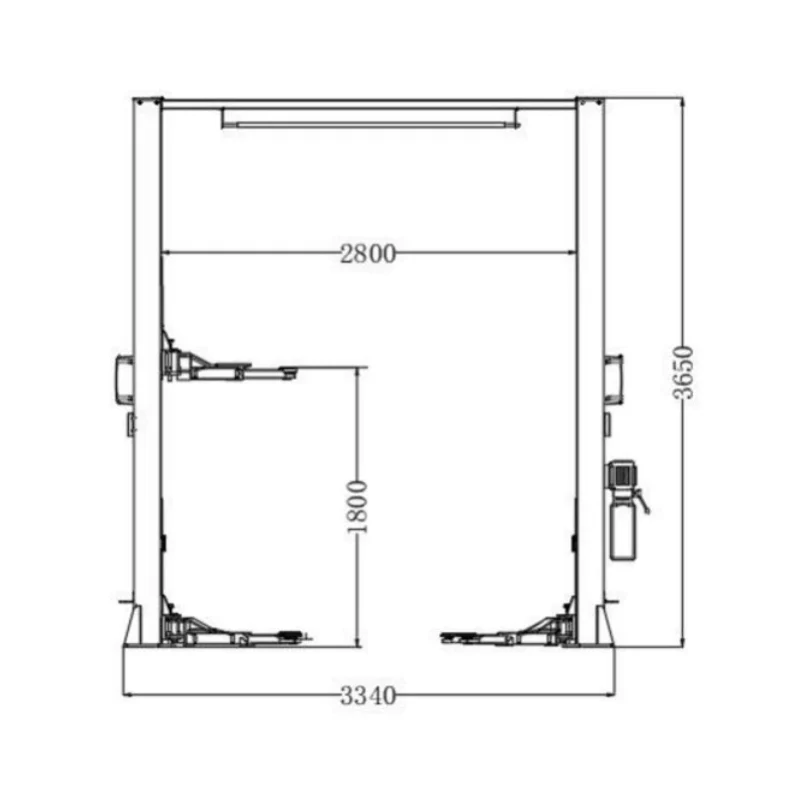

Technical Specifications
| Specification | Imperial | Metric |
|---|---|---|
| Lifting Capacity | 12,000 lbs. | 5,443 kg |

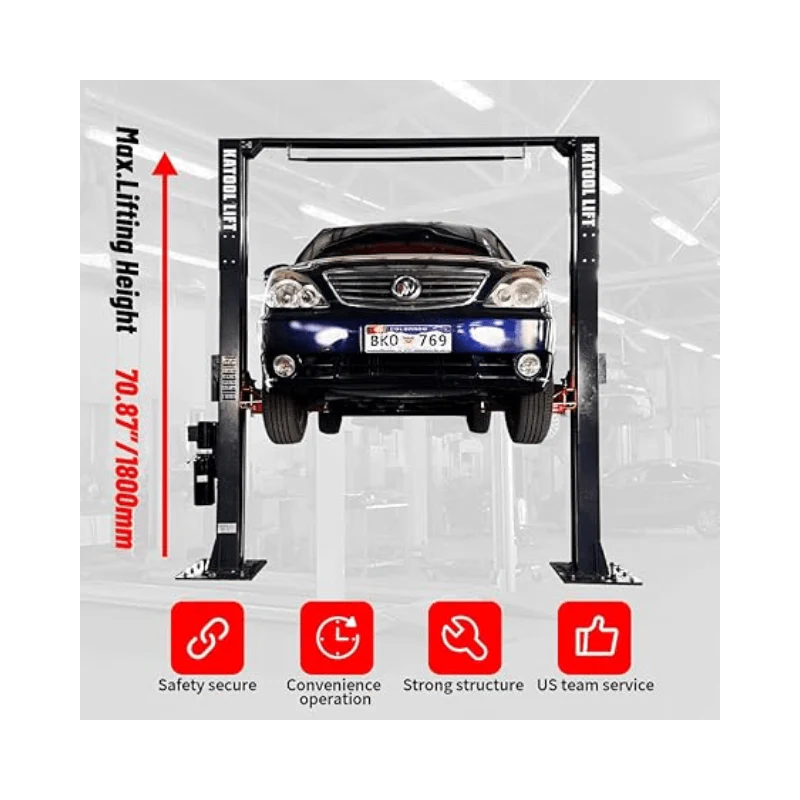

| Max. Lifting Height | 70.87" | 1,800 mm |
| Overall Height | 144" | 3,658 mm |
| Overall Width | 131.5" | 3,340 mm |
| Motor Power | 4.0HP / 220V | 4.0HP / 220V |
| Min. Pad Height | 4.25" | 110 mm |
Shipping, Handling & Exclusive Warranty
Factory-Direct Logistics: To ensure industrial-strength value, this unit ships directly from the factory floor. Estimated delivery is 14-24 days. Orders are processed within 4-5 business days.
Exclusive autoliftsupplyusa Warranty:
- 5-Year Structural Warranty: Covers the columns, carriages, and lifting arms.
- 2-Year Hydraulic Warranty: Covers the 4.0HP power unit and cylinders.
Note : Enjoy nationwide doorstep delivery and complimentary professional installation. Our certified team manages the entire process from delivery to final setup — ensuring your equipment is fully installed, tested, and ready to use.
