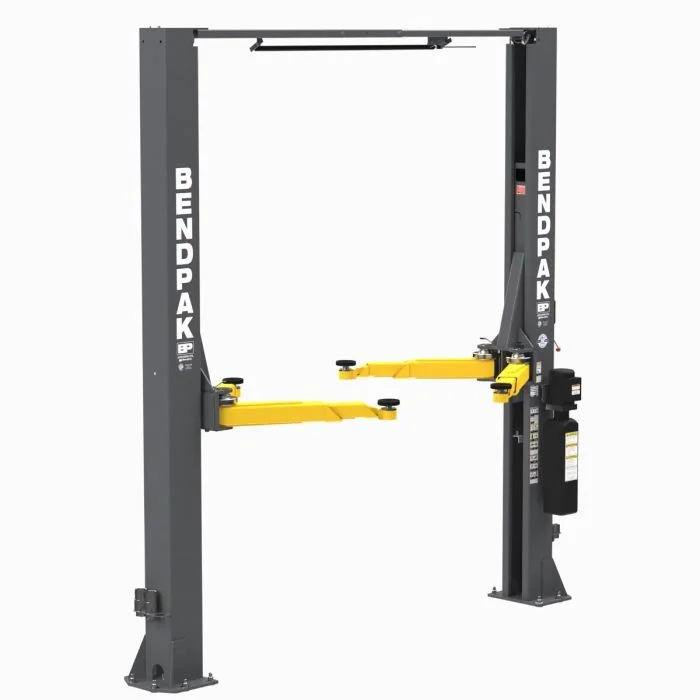

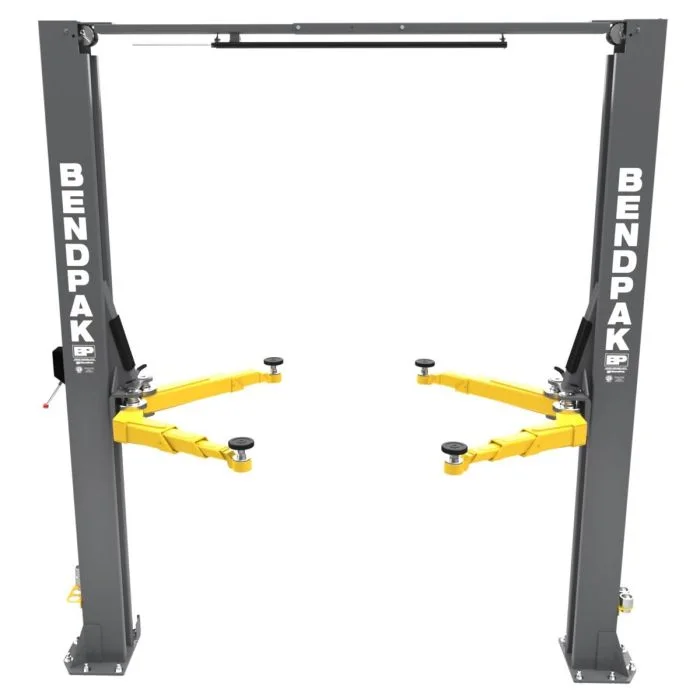

BendPak 10AP 10,000-lb. Capacity Two-Post Lift | Professional Grade Bi-Metric Series – Factory-Direct Savings
$ 2,266.01
$ 6,095.01
The AutoLiftSupplyUSA Advantage
We make premium shop equipment easier to buy—clear, upfront pricing, real product support, and freight shipping coordination from order to delivery. Every BendPak two-post lift is backed by the BendPak 5‑2‑1 Limited Warranty, including 5 years on structure and 2 years on hydraulic cylinders & power unit (plus additional coverage on operating and electrical components).
BendPak 10AP: The Future of Shop Efficiency
The BendPak 10AP is more than a lifting solution—it’s a shop-wide efficiency upgrade. Built as part of BendPak’s AP Series and ALI Certified, it combines an adaptable clearfloor design with modern safety and service-friendly engineering. Its standout Bi‑Metric™ arm system lets techs set up in symmetric or asymmetric configurations—so one bay can handle a wider variety of vehicles with less repositioning time.
Core Engineering Features

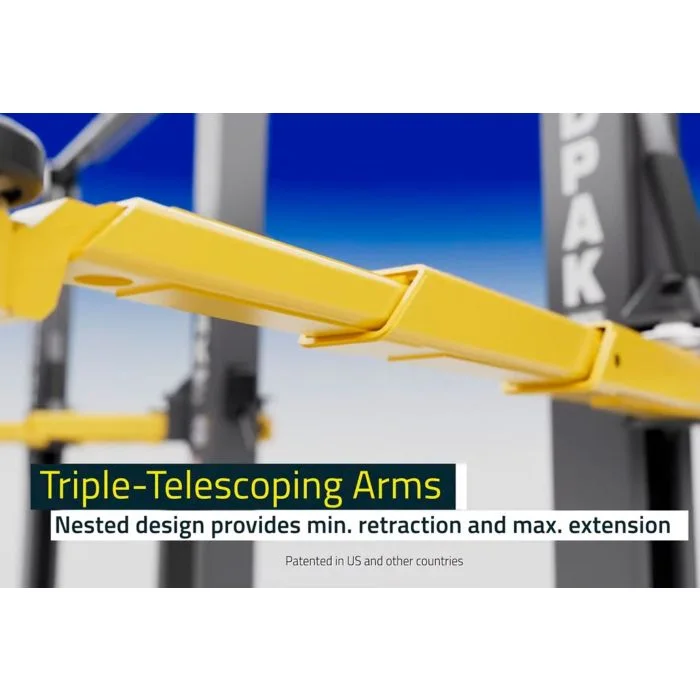

- ✓ Low‑Pro™ Swing Arms (Drop‑End): Telescoping, low-profile arms with a dropped-end pad receiver for better access to lifting points on lowered vehicles and modern chassis designs.
- ✓ Dura‑Glide™ UHMW Bearing System: Self-lubricating UHMW polyethylene bearing design for smooth carriage travel and long service life under demanding shop use.

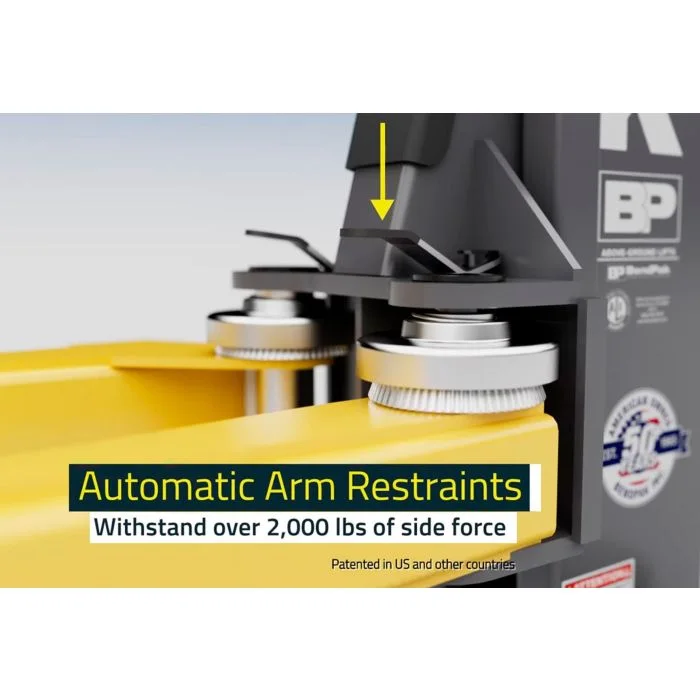

- ✓ Automatic Swing Arm Restraints (ASARS): Heavy-duty restraints engage automatically as the lift rises to help prevent unplanned arm movement and improve lateral stability during service.
- ✓ HVLP Power + Dual Direct‑Drive Cylinders: Electric/hydraulic HVLP power system paired with dual hydraulic direct-drive cylinders for smooth, consistent lifting performance (no chain-driven lifting).
Technical Specifications (10AP Standard)
| Performance Metric | Imperial Units | Metric Units |
|---|---|---|
| Lifting Capacity | 10,000 lbs | 4,536 kg |
| Rise (A) | 69" | 1,753 mm |
| Rise + Pad (B) | 73" | 1,854 mm |
| Overall Column Height | 145" | 3,683 mm |
| Drive‑Thru Clearance (Adjustable Width) | 92" or 102" | 2,338 mm or 2,592 mm |
| Time to Full Rise | ≈ 45 seconds | ≈ 45 seconds |
| Power / Motor | 208–240V / 50–60Hz / 1‑Ph 3 HP (≈11 max operating amps) | Single Phase |
Note: Electrical requirements can vary by configuration and local code—always verify against the unit’s data plate and your facility’s electrical service.
Logistics, Handling & Warranty Support
Freight Shipping (Estimated): To keep pricing competitive, this lift ships via freight delivery. Please allow 4–5 business days for order processing, quality checks, and tracking initialization. Typical transit time is 14–24 days, depending on destination and carrier scheduling.
Warranty Coverage (BendPak 5‑2‑1 Limited Warranty):
- 5‑Year Structural Coverage: columns, carriages, arms, and main structure.
- 2‑Year Coverage: hydraulic cylinders and power unit.
- Note : Enjoy nationwide doorstep delivery and complimentary professional installation. Our certified team manages the entire process from delivery to final setup — ensuring your equipment is fully installed, tested, and ready to use.
