Atlas PV10PX 10,000 lb Overhead 2-Post Lift
$ 1,799
$ 4,099
Why autoliftsupplyusa?
We specialize in Factory-Direct Savings, delivering elite automotive equipment straight to your bay. Your investment is secured by our Exclusive 5-Year Structural Warranty & 2-Year Hydraulic Warranty—providing professional-grade peace of mind for years to come.

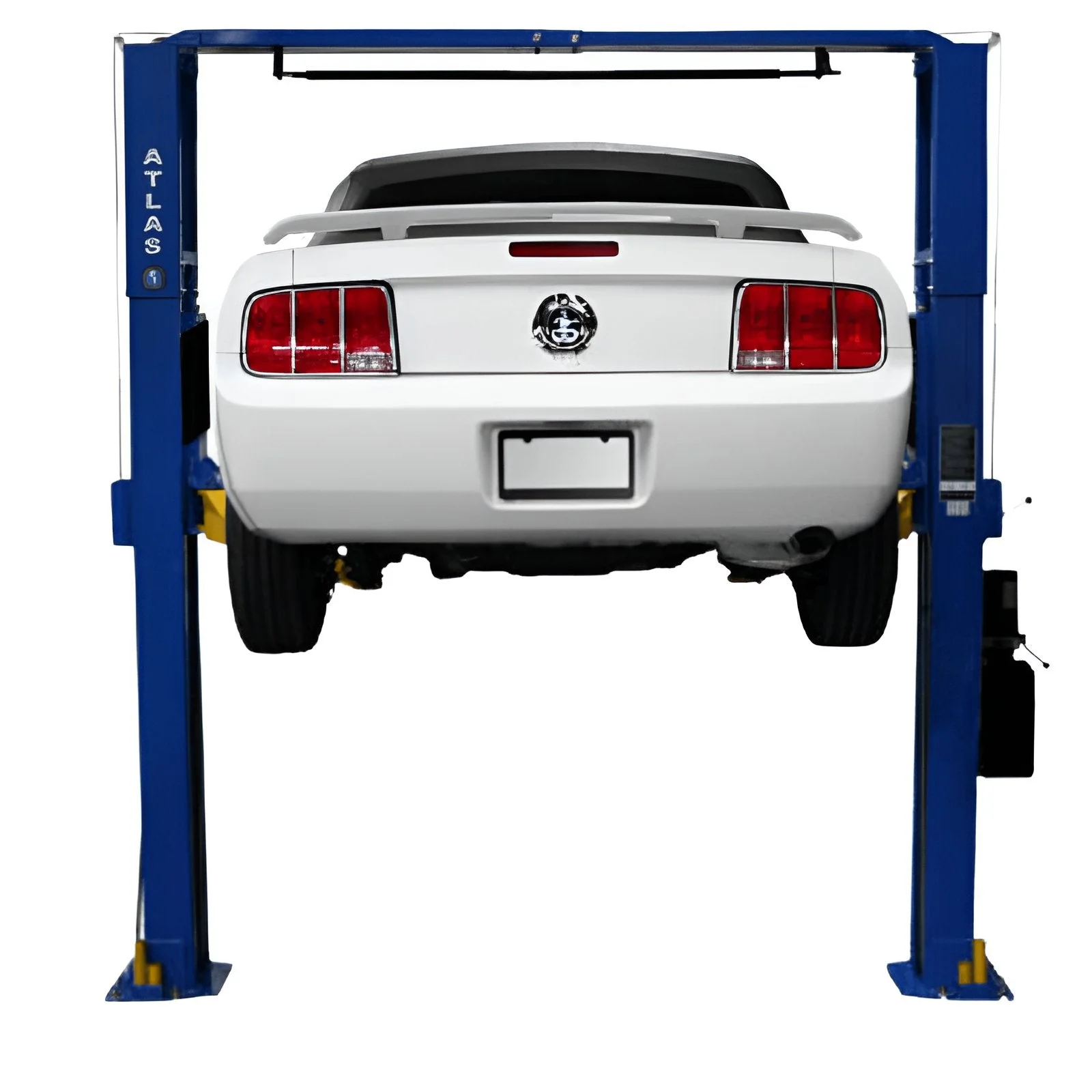

Atlas PV10PX 10,000 lb. Overhead 2-Post Lift
The Atlas PV10PX is a top-tier lifting solution designed for both commercial garages and home enthusiasts. Built to handle a wide range of vehicles, from compact cars to one-ton diesel duallies, this lift offers exceptional strength and versatility. Its overhead design features a padded shut-off bar, protecting vehicle roofs from making contact with the crossbar during operation.
The PV10PX’s rugged construction includes durable rubber protective covers on the carriages to prevent damage to vehicle doors. For added versatility, it comes equipped with a deluxe 12-piece truck adapter set—offering more reach than standard kits. Whether you are running a professional automotive shop or a high-end home garage, the PV10PX delivers professional-grade quality at an unbeatable value.
Atlas PV10PX Special Features:
- 10,000 lb. Capacity: Heavy-duty lifting for commercial and residential use.

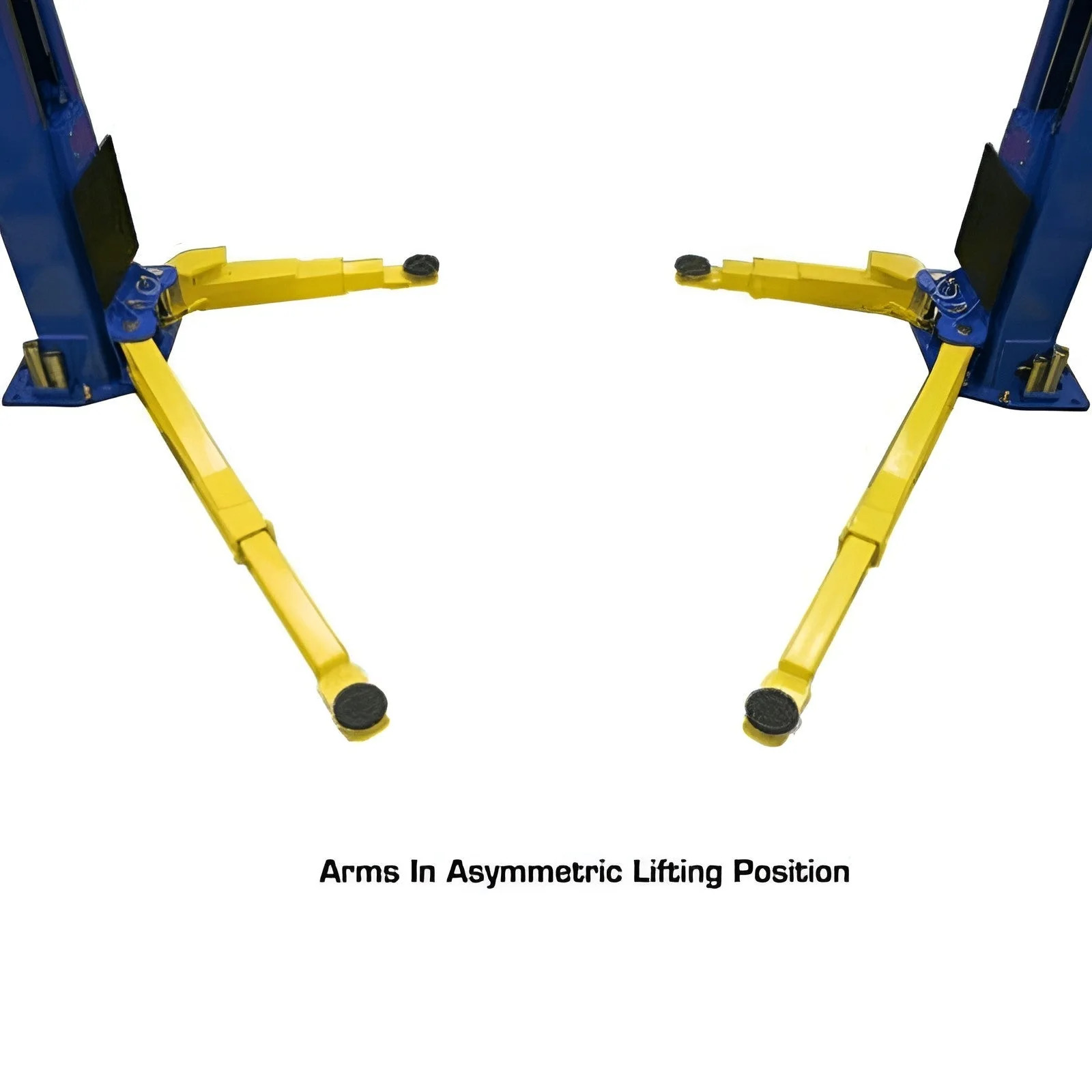

- Symmetric/Asymmetric Arms: Flexible arm configuration to balance any vehicle load.
- Direct-Drive Cylinders: Reliable power for smooth lifting and lowering.
- Padded Shut-Off Bar: Safeguards vehicles from overhead contact.

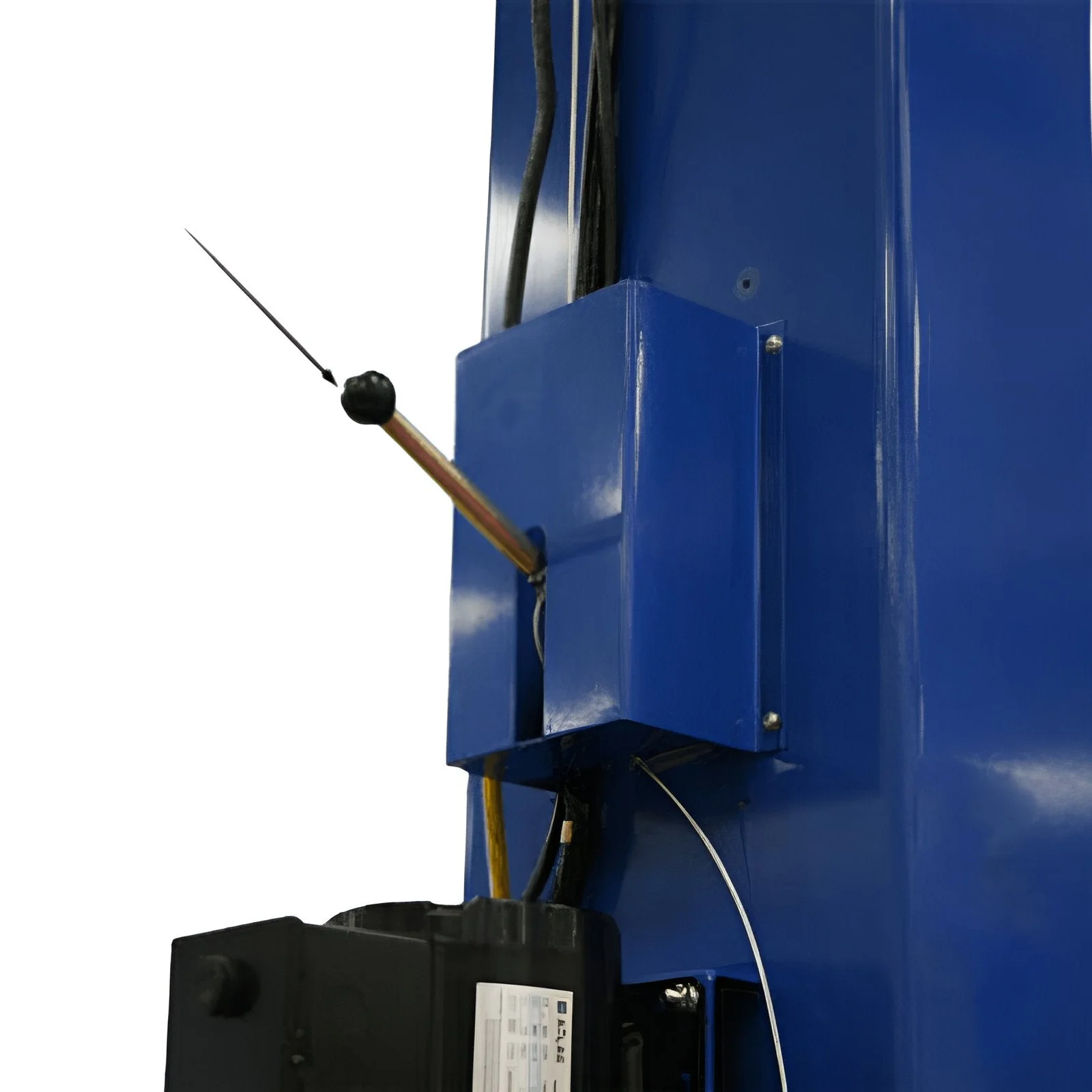

- Single Point Lock Release: Streamlines operation with a centralized release mechanism.
- Padded Carriages: Protects vehicle doors from dings and scratches.

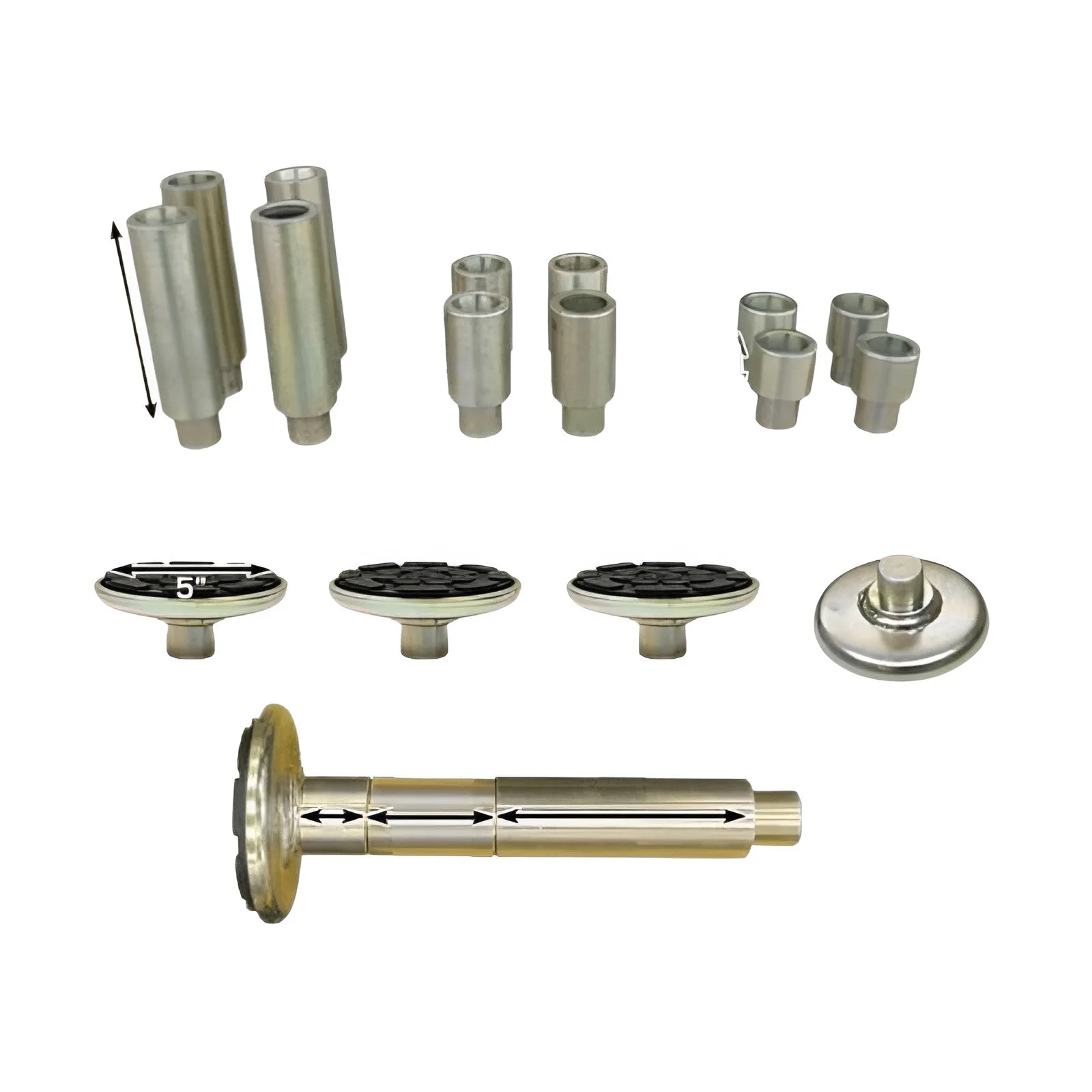

- Free 12-Piece Truck Adapter Set: Included as standard for maximum vehicle compatibility.
- Professional Finish: Durable powder coat finish for long-lasting wear resistance.
Technical Specifications
| Feature | Specification (Imperial) | Metric Equivalent |
|---|---|---|
| Lifting Capacity | 10,000 lbs | 4,536 kg |
| Overall Height | 143 1/8" or 147" | 3,635 mm / 3,734 mm |

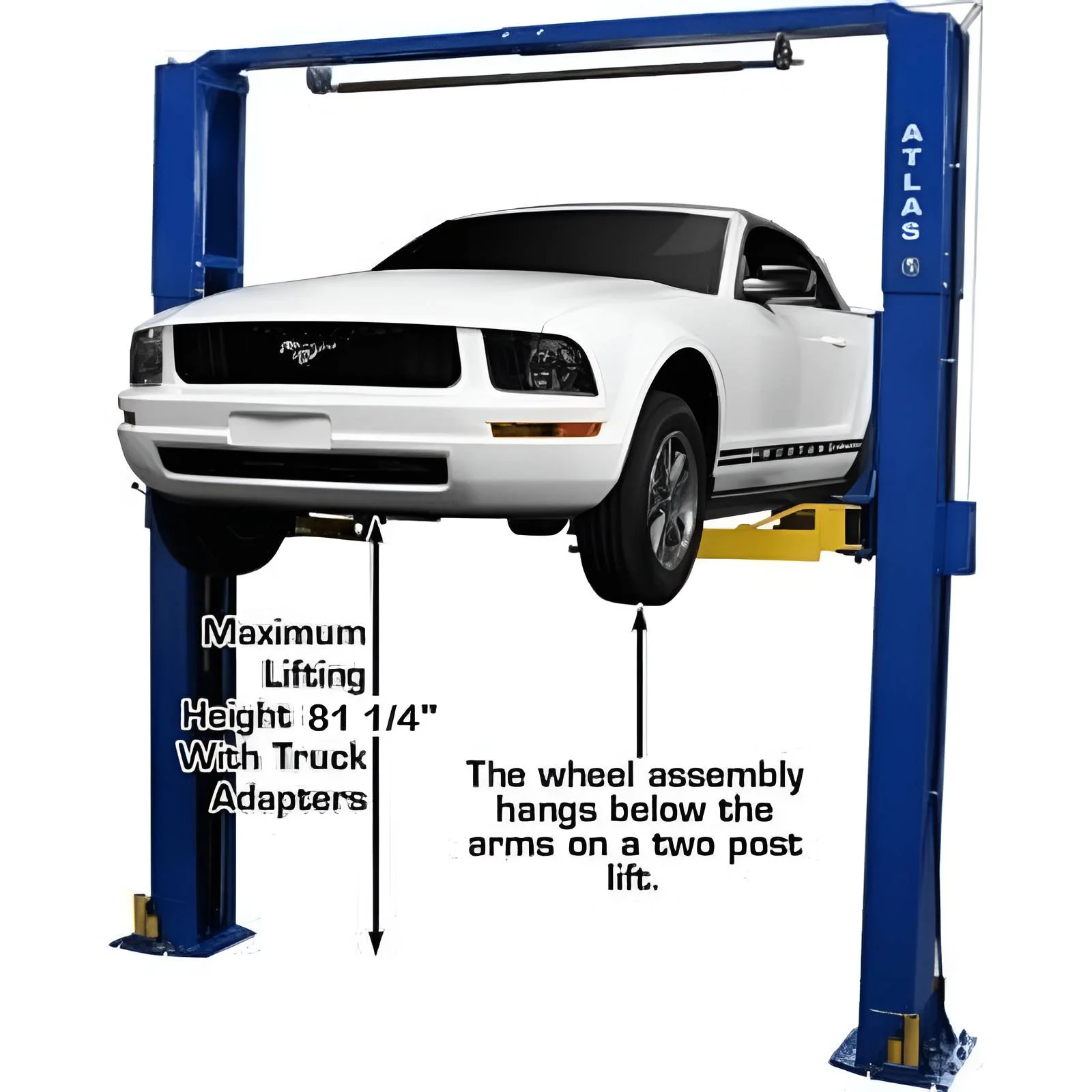

| Max Lift Height (w/ Adapters) | 81 1/4" | 2,064 mm |
| Inside Column Width | 110 1/8" | 2,797 mm |
| Power Requirement | 220V Single-Phase (30 Amp) | Standard Shop Power |
| Shipping Weight | 1,900 lbs | 862 kg |
Shipping, Handling & Warranty
Factory-Direct Savings: This unit ships directly from the factory terminal to provide you with the lowest possible price. Please allow 4-5 business days for handling and 14-24 days for delivery. Tracking details will be provided the moment your shipment departs.
Exclusive Warranty: Your Atlas PV10PX is protected by our industry-leading 5-Year Structural Warranty and 2-Year Hydraulic Warranty, ensuring your shop equipment remains a reliable asset for years to come.
Note : Enjoy nationwide doorstep delivery and complimentary professional installation. Our certified team manages the entire process from delivery to final setup — ensuring your equipment is fully installed, tested, and ready to use.
